High Viscosity Twin Screw Magnetic Drive Pump
SLM-LVO
Klaus Union’s SLM-LVO is a sealless twin screw pump with permanent magnetic coupling - ideal for high viscosity liquids.
Operating Parameters
- Flow rates up to 1250 GPM
- Total delivery heads up to 850 feet
- Temperature ratings from +14 °F (-10 °C) to +572 °F (+300 °C)
- Pressure rating to 232 PSIG (PN16)
- Viscosity range - max. viscosity 3,000 cPs
Pumping
- Isocyanates
- Polycarbonates
- Oils and fats
- Monomeres
- Polyesters
- Resins
- Viscous liquids
- Ultrapure liquids
Applications
- Chemical and petrochemical industries
- Refineries
- Synthetic and rubber industries
- Paint and lacquer industries

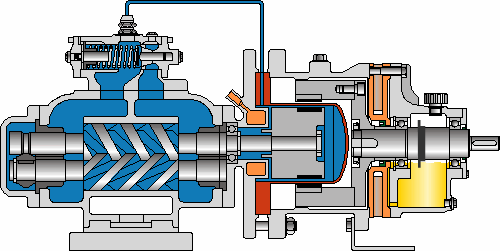

Construction
- Horizontal twin screw pump
- Permanent magnet drive system, no mechanical seal
- Separation of liquid chamber/atmosphere by means of an isolation shell
- Synchronous drive transmitted by inner and outer magnet systems
- Liquid lubricated internal bearings made of silicon carbide
- Bearings of outer magnet carrier: deep groove ball bearings
Standard Materials
|
Casing: |
Nodular cast iron |
| Spindle: |
Hardened steel |
|
Isolation shell: |
316 SS/Hastelloy C4 |
|
Inner magnet carrier: |
316 SS/Hastelloy C4 |
|
Internal bearings: |
Silicon carbide,
alpha grade/cast iron |
|
Bearing
frame: |
Cast steel/nodular
cast iron |
|
Magnets: |
Rare earth samarium cobalt |
Special Alloy
N/A
Optional Features
- PMP 25 - Power monitor
- TPS - Isolation shell temperature probe
- CDS - Double-wall isolation shell (dual containment)
- External flush connection
- Isolation shell materials: Titanium, non-metallic (carbon fiber/PTFE)
