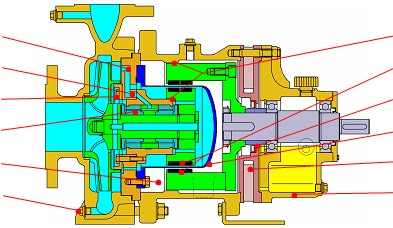

Magnetic Drive Pump Cutaway - Technical Features

The SLM & "V" Pump Design - The Modular Mag Drive Concept Features & Benefits

Self Venting

Internal Flush Flow

Balanced Thrust Loads

Journal Bearings

Heating & Cooling

Fully Drainable


Rub Rings

Magnet Drive

Secondary Sealing

Isolation Shell

Thermal Barrier

Removable Drive Frame

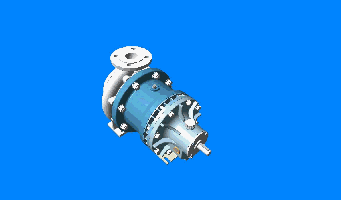

Modular Design
Interchangeable modules allow customizing your pump to best meet the requirements of your application with off-the-shelf availability of design variations and accessories.
Your Klaus Union pump can be field-modified to accommodate for a new application.

Maintenance-Free Journal Bearings
Our patented double journal bearing cartridge is maintenance free and user-friendly.
Field assembling of the product lubricated bearing arrangement does not require special tools, o-rings or alignment procedures. Three different Bearing materials are available to provide the most efficient solution for your application – Silicon Carbide (SSIC), Carbon (EK) and Stellite (ST).

Back to Top ↑

Advanced Internal Flush Flow

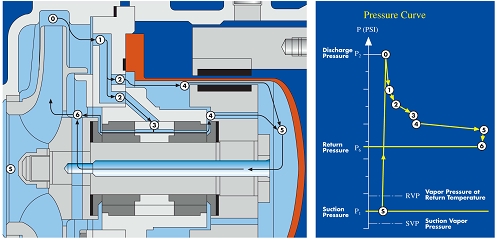

The internal flush flow utilizes the pumped liquid to lubricate the journal bearings and absorb heat from Eddy Current Losses. A redundant internal system directs the liquid and always maintains sufficient vapor suppression to avoid flashing. To keep the magnet area free from solids, a self cleaning filter can be added. An external feed can be used to lubricate & cool or simply flush the magnet area if desired.

Back to Top ↑

Thermal Barrier
When pumping hot liquids, the thermal barrier protects the oil lubricated ball bearings in the drive frame from overheating.

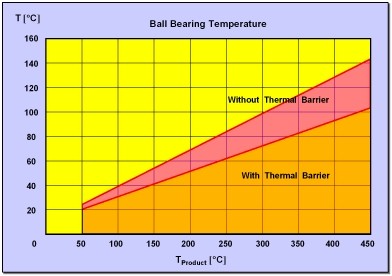

The chart below illustrates how effective the thermal barrier works – when pumping product at 300 °C the thermal barrier
lowers the ball bearing temperature by appr. 28 °C - increasing the life time of the bearings.

Back to Top ↑

Six Isolation Shell Options
The isolation shell separates the pressurized product area from the surrounding atmosphere. To meet the specific requirements of your applications, Klaus Union offers six different isolation shell options.

  1. Hastelloy®-C4
    is our standard isolation shell material - providing a safe and efficient solution.
  2. Titanium Alloy (LT31)
    is an upgrade to our Hastelloy® shell when higher pressure ratings and increased efficiency are required.
  3. Pure Titanium (RT15)
    handles extremely aggressive chemicals where Hastelloy®-C4 or Titanium Alloy (LT31) would not withstand.
  4. Ceramic (Zirconium Oxide)
    is one of two non-metallic isolation shell options to eliminate Eddy Current Losses and handle extremely aggressive liquids.
  5. Carbon fiber with PTFE liner
    is our second non-metallic isolation shell option.
  6. Double Wall Isolation Shell
    provides true dual containment for extremely critical applications. Monitoring the vacuum between both Hastelloy®-C4 shells allows detecting a breach of one shell and safely shut down the pump to avoid further damage and leakage to the atmosphere.

Two options to monitor the vacuum between both shells
(right) is an electronic pressure transmitter
CDS-System (left) is a mechanical pressure transmitter

Back to Top ↑

Balanced Thrust Loads

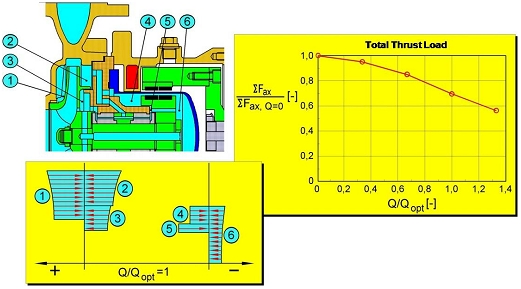

The advanced hydraulic design reduces journal bearing loads to a minimum, to guarantee many years of maintenance-free operation.
